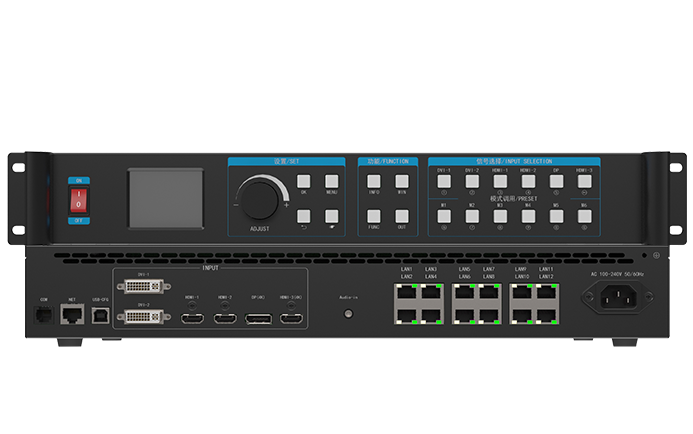

2 in 1 Controller KLS12

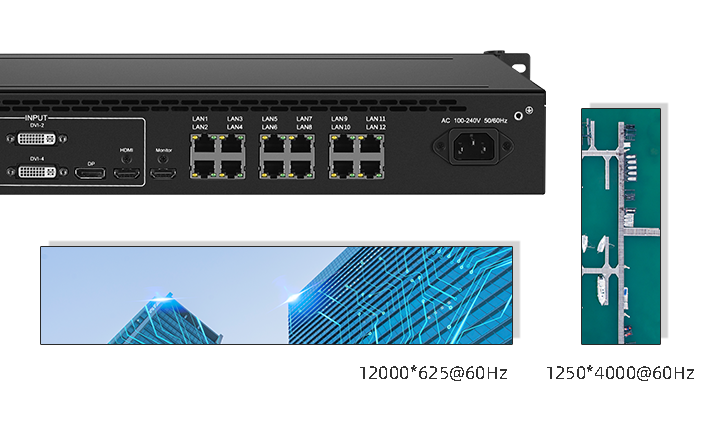

12 Ethernet ports
The KLS12 is equipped with 12 network port outputs, supporting a maximum of 7.8 million pixel loading, a maximum width of 12,000 pixels, and a maximum of 4,000 pixels.
The LED display can be driven directly without an external sending controller.

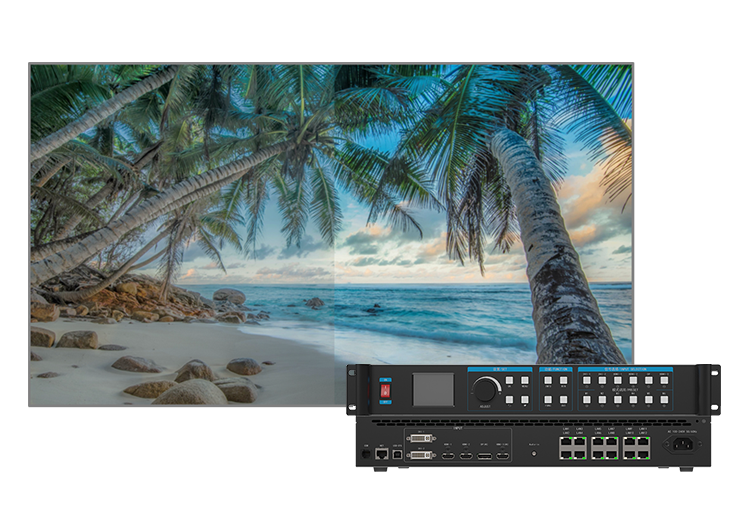

Kystar HDR Enhancement Image enhancement
KLS12 supports Kystar HDR Enhancement (K-HDR) technology, which can perform real-time dynamic optimization according to the image content, widen the dynamic range of the image, enable ordinary SDR images to obtain HDR display effects, and solve the less painful points of HDR video sources in the industry. Bring a stunning visual experience.

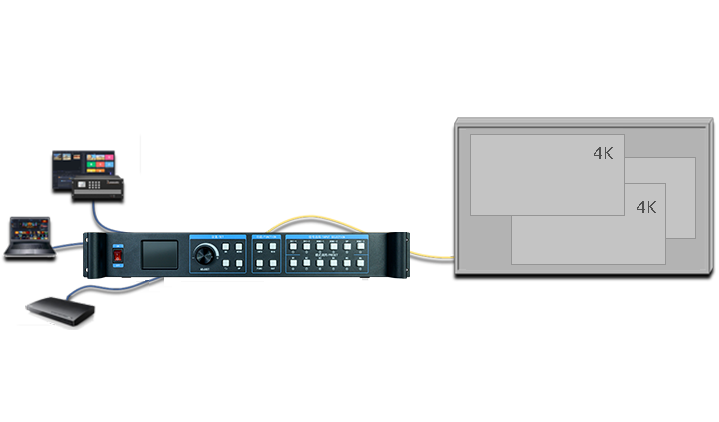

Six-channel Video Signal Input
KLS12 supports six-channel HD video signal input, including DVI×4, HDMI×1,DP×2.

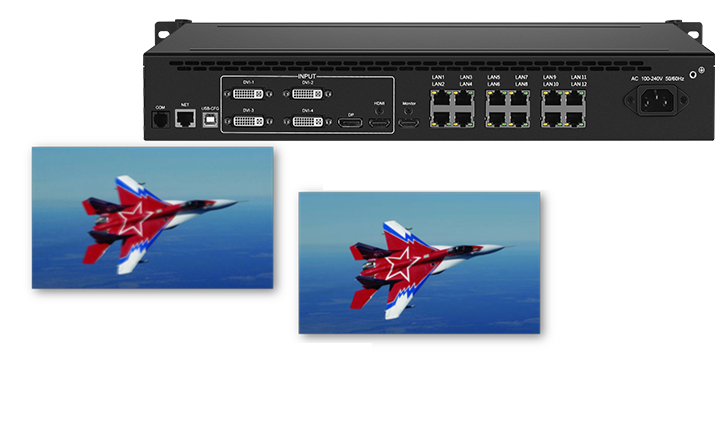

Three-screen arbitrary layout
KLS12 allows up to 3 signal screens to be displayed. All input signals can be simultaneously on-screen.

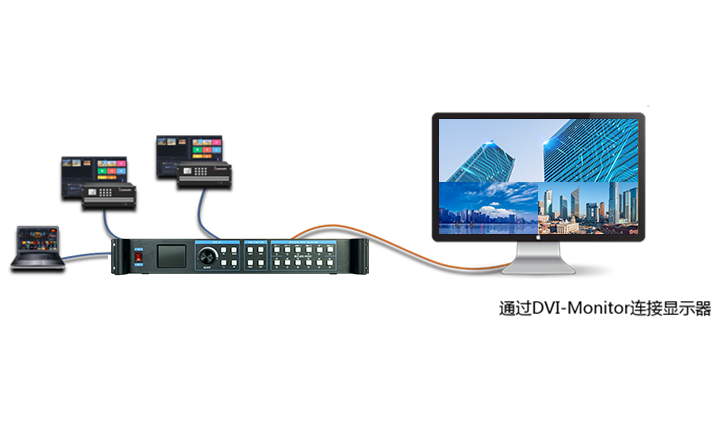

Input preview and output monitoring
Complete input and output monitoring on one display.
Connected to the monitor through the DVI-Monitor output port, you can preview all input signals and monitor the output signal screen at the same time.

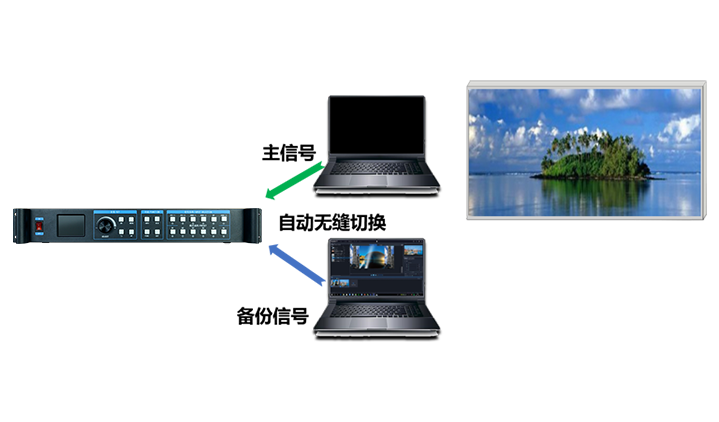

Input signal hot backup
Designated backup signal seamless switching
KLS12 can designate any signal as the backup of the current signal. When the signal fails, the backup signal automatically switches seamlessly.

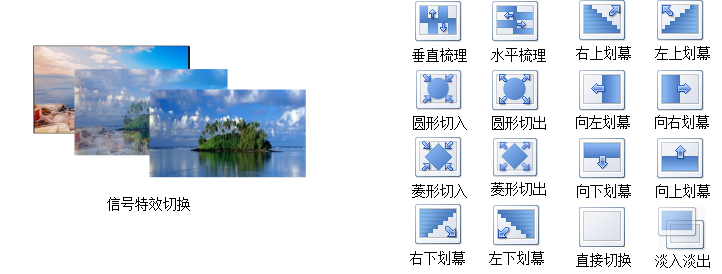

Seamless Transition With Effects
Whether in case of a signal or a preset, KLS12 is capable of seamless transition, without any blackout, glimmer or delay in the process; Besides, KLS12 owns over ten transition effects for choice by the user, adaptable for different applications.
